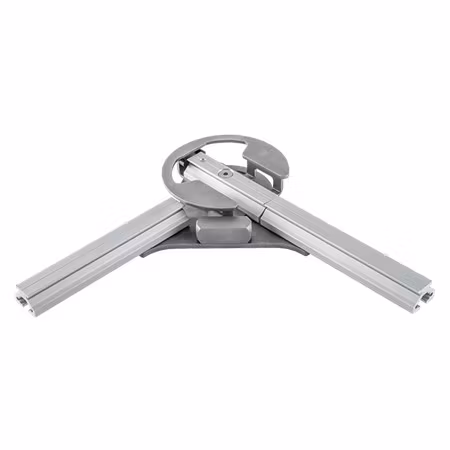

Assy 90° rail-switch

  • 7 650 kr

The Harken Industrial Long-Span Access Rail system is designed to be used as an adjustable anchorage point for interior and exterior building maintenance, and a

I lager.
Dela
Artikelnummer: INTURN1.LS
Leverantör: Harken
The Harken Industrial Long-Span Access Rail system is designed to be used as an adjustable anchorage point for interior and exterior building maintenance, and a variety of other work applications. The system provides freedom of vertical and horizontal movement at height, the ability to lock into position while working, and can be used for human suspension. Turntables allow users to easily change trolley directions without disconnecting from the rail system. INTURN1.LS allows 90° directional changes. Double trolleys (IN9606.CLEAR) cannot be used with the turntable. Two single trolleys must be used.


Independently tested and compliant with EN795:2012 class D; meets ANSI Z359, and is OSHA compliant.


Length (mm)412 mm
Length (in)16 2/9 in
Width (mm)412 mm
Width (in)16 2/9 in
Weight (lb)9.61 lb
MaterialAluminum/stainless steel
Includes4 INPIN.LS
Height (mm)49 mm
Height (in)2 in
Weight (oz)153.79 oz
Weight (kg)4.36 kg
Use withAll R27 LS brackets


Drawing DWG
