D-BOLT TYP 42 (AP-058)

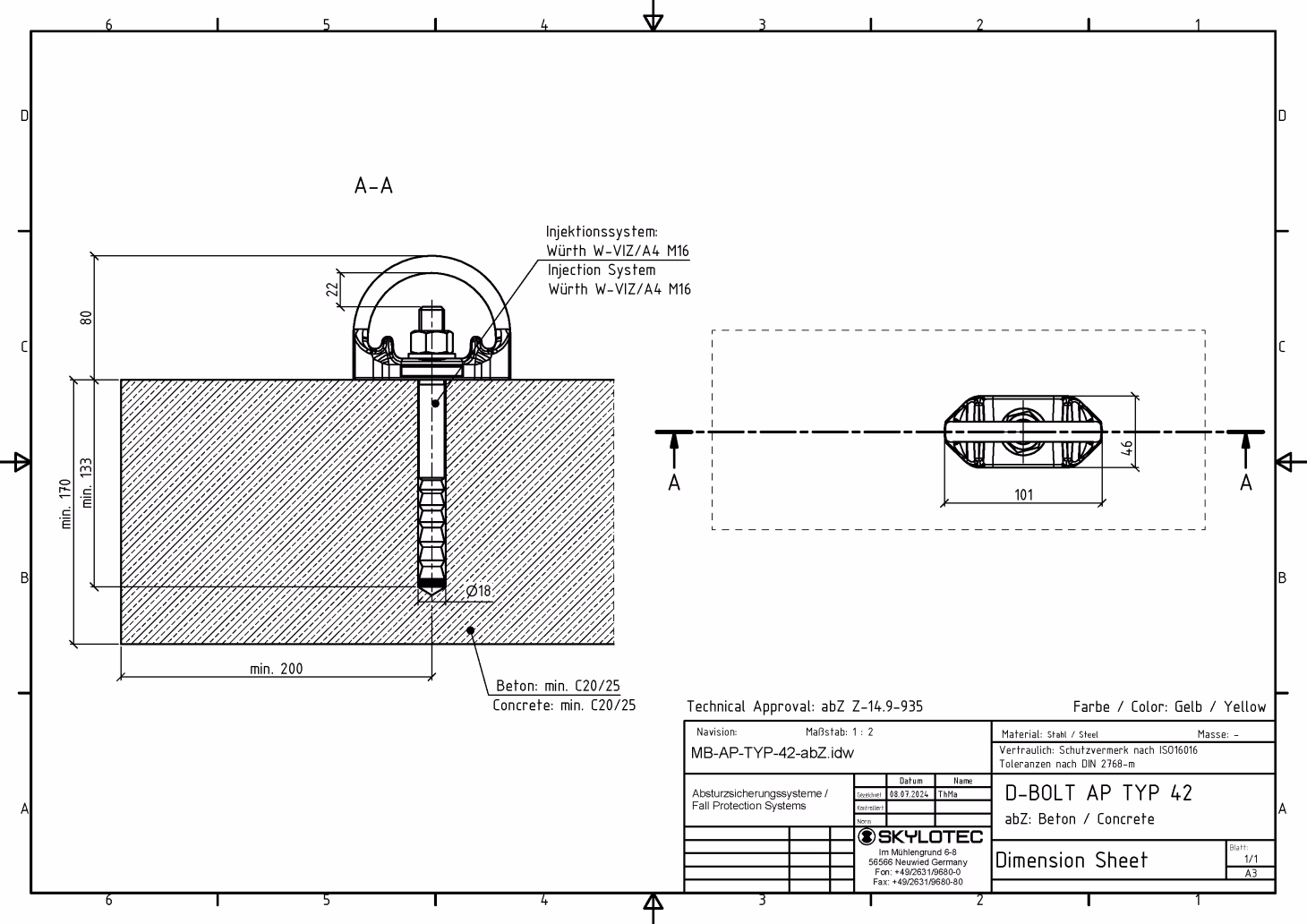

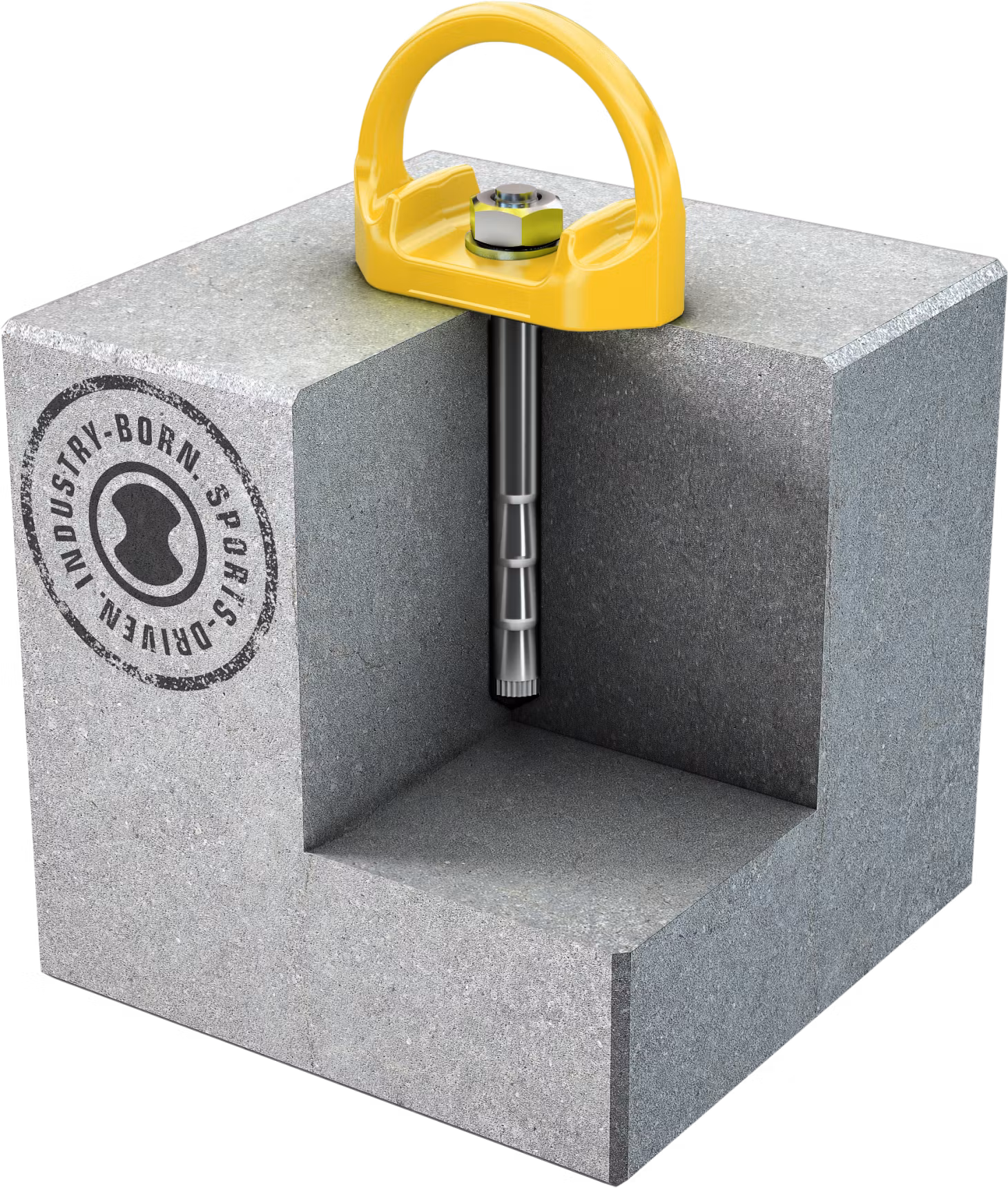

The single anchor point D-BOLT AP-TYP-42 is tested and certified according to EN 795, CEN/TS 16415 and has a general technical approval (abZ) from the German Institute for Building Technology (DIBt). It is made of quenched and tempered steel 1.0503, is yellow painted and has been specially developed for use on concrete substrates (grade min. C20/25, dmin.=170 mm). It is fixed with an M16 anchor rod with external thread, which is glued into the concrete with an approved injection mortar (not included). It can bear loads in all directions and can secure up to three people from falling with their PPEgA. The minimum thickness of the base is 170 mm.


- Single anchor point, especially for concrete substrates (dmin: 170 mm)
- Fixing of the anchor rod with external thread is done by means of injection mortar (not included in delivery) (Klebanker), AK 1, approval for 3 persons
